SPECIFICATIONS

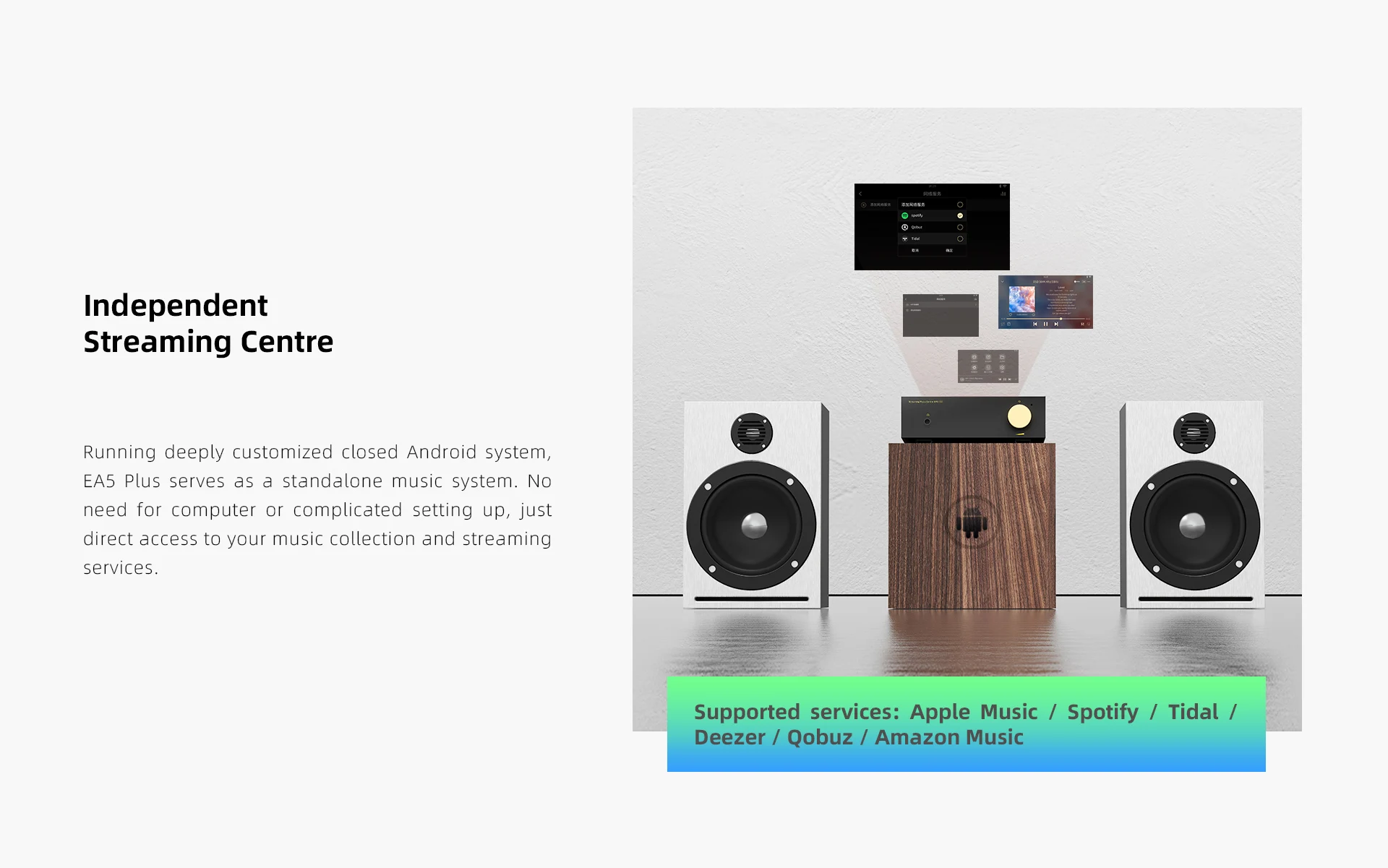

System: Closed Customized Android, with build-in streaming apps

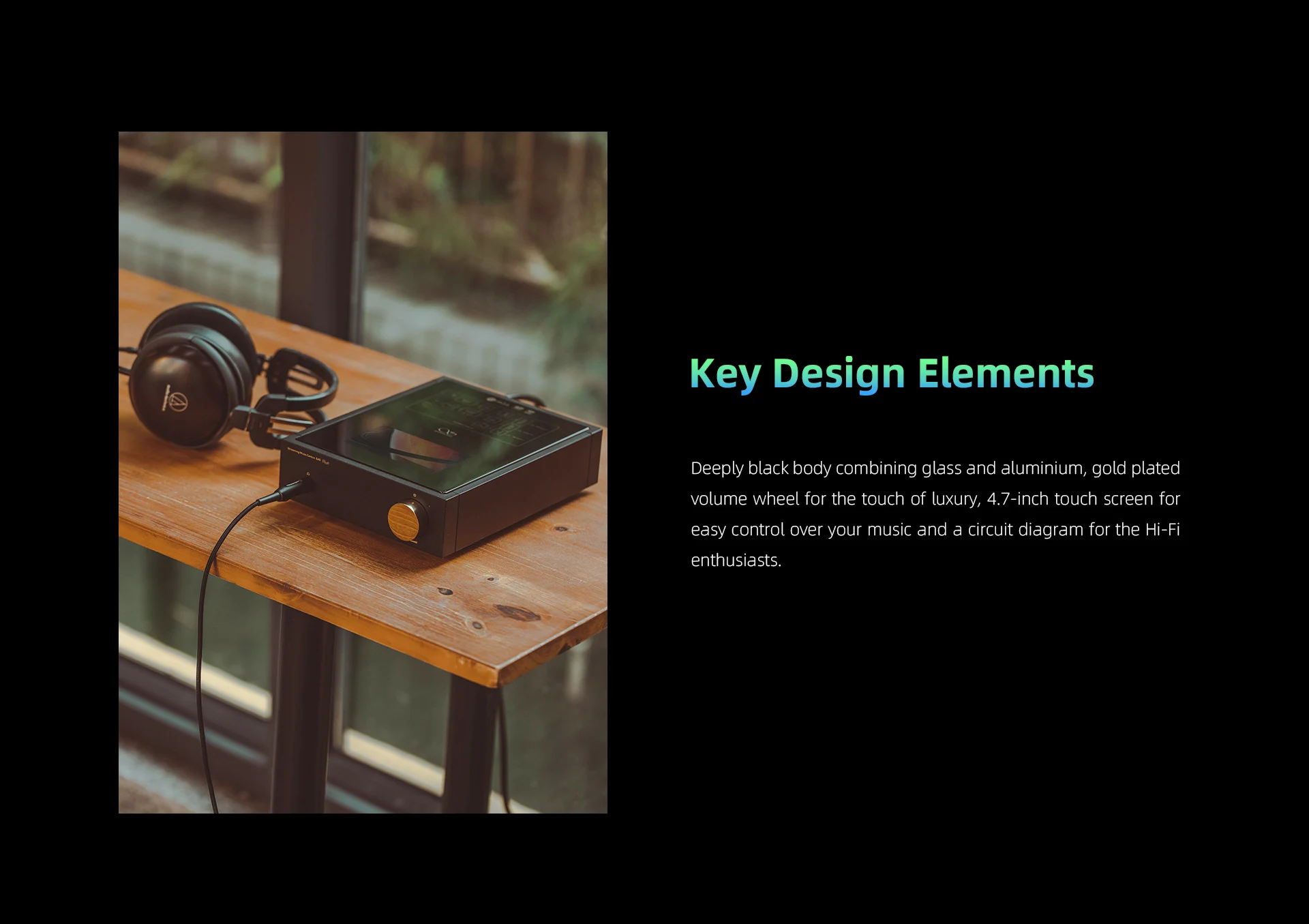

Display: Touch 4.7-inch 720p
Dimensions: 238 x 188 x 55 mm
Analog circuit:
AKM AK4493 DAC

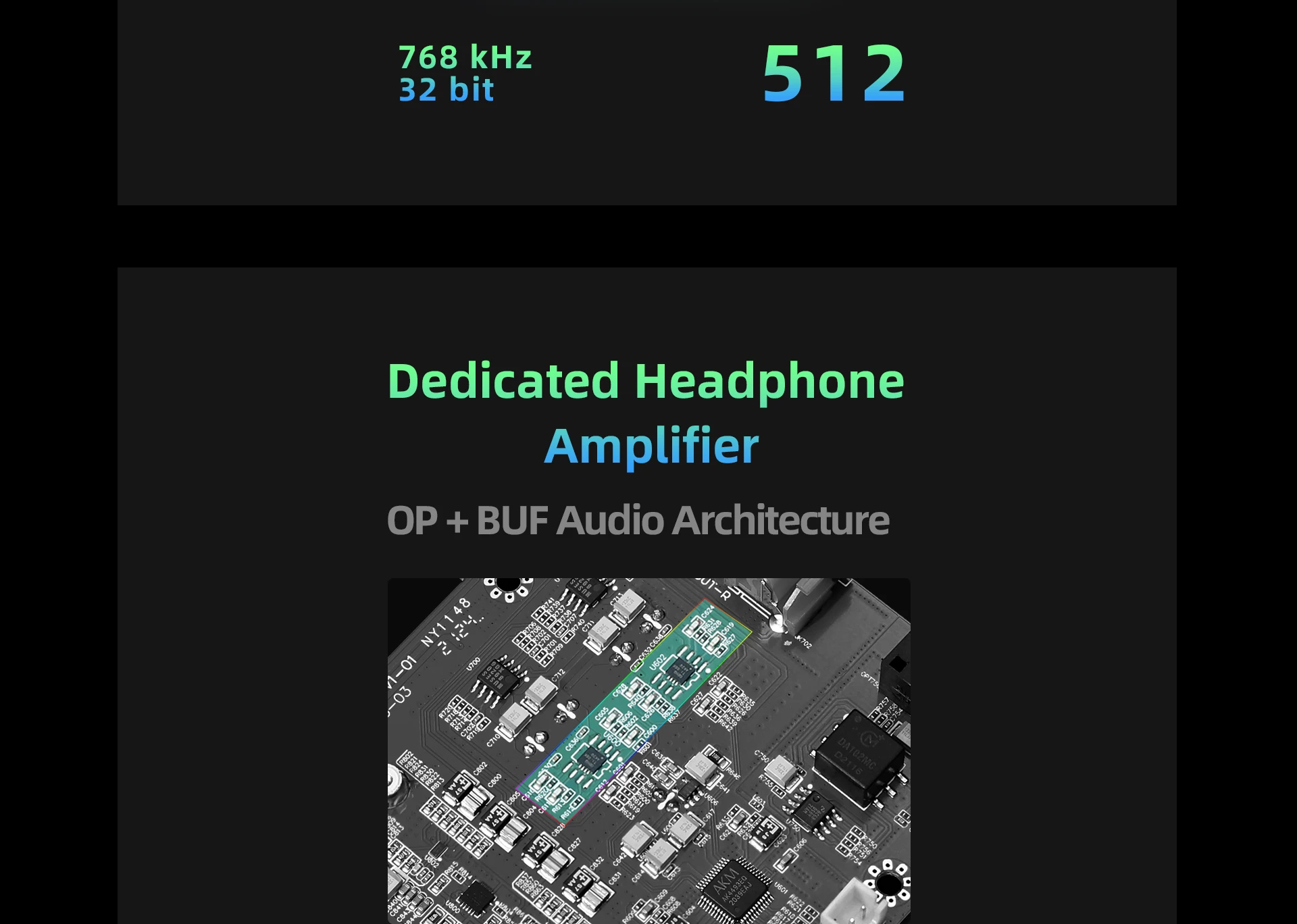

TPA6120A2 for headphones
Abletec ALC0100 Class-D for speakers
3rd Generation FPGA
CPAF Filter technology
KDS Crystal oscillator
Panasonic Tantalum capacitors

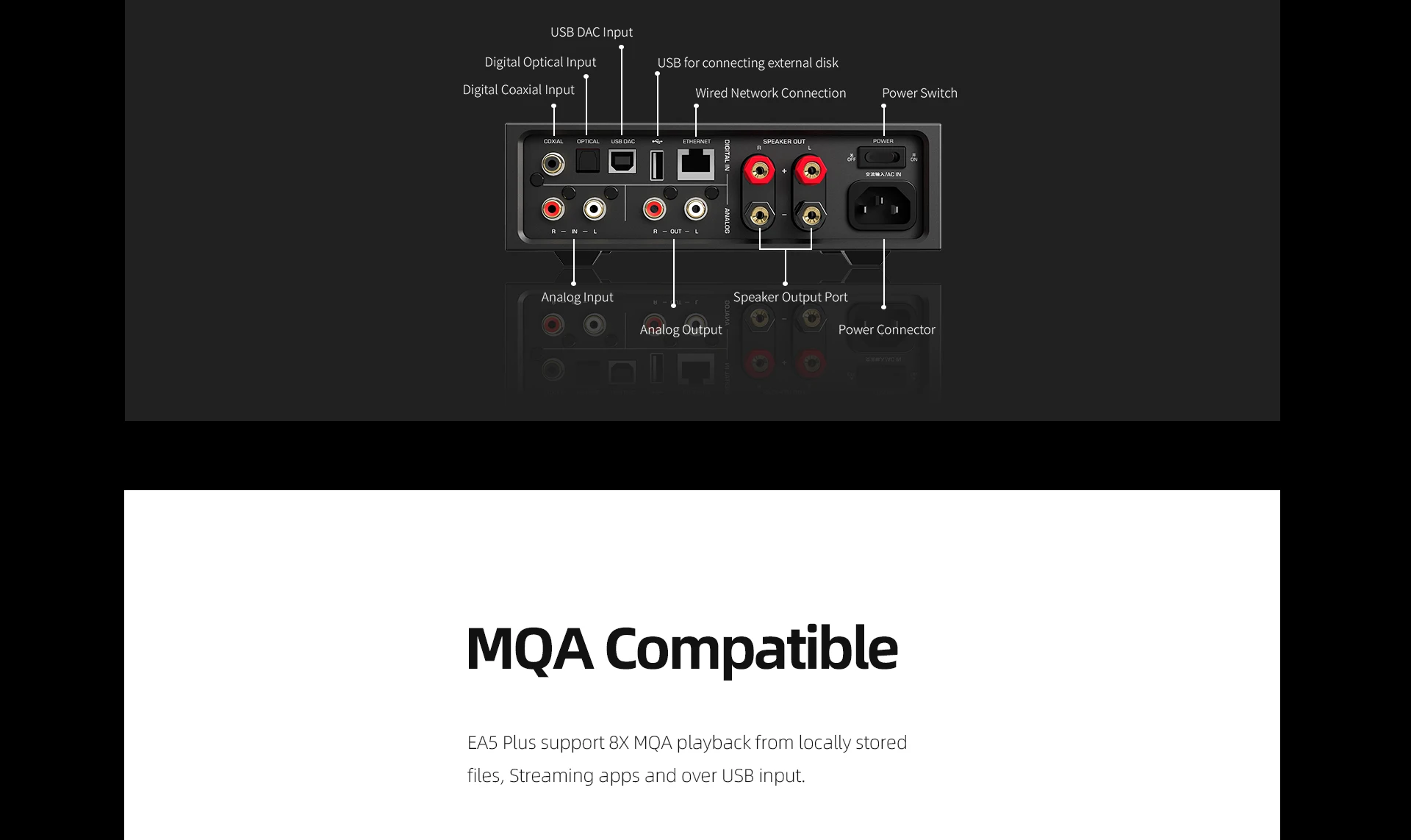

Outputs: 6.35mm single ended for headphones and standard speaker port
Pre-amp output: RCA
Digital input: USB, Coaxial, optical, LAN and external driver USB slot
Analog Input: RCA
Output power:
Headphones 6.35mm – 570mW @ 32Ohm
Speakers – 50W @ 4Ohm / 32W @ 8Ohm per channel
Wireless connection:
Wifi 2.4 & 5G
Support DLNA and Airplay

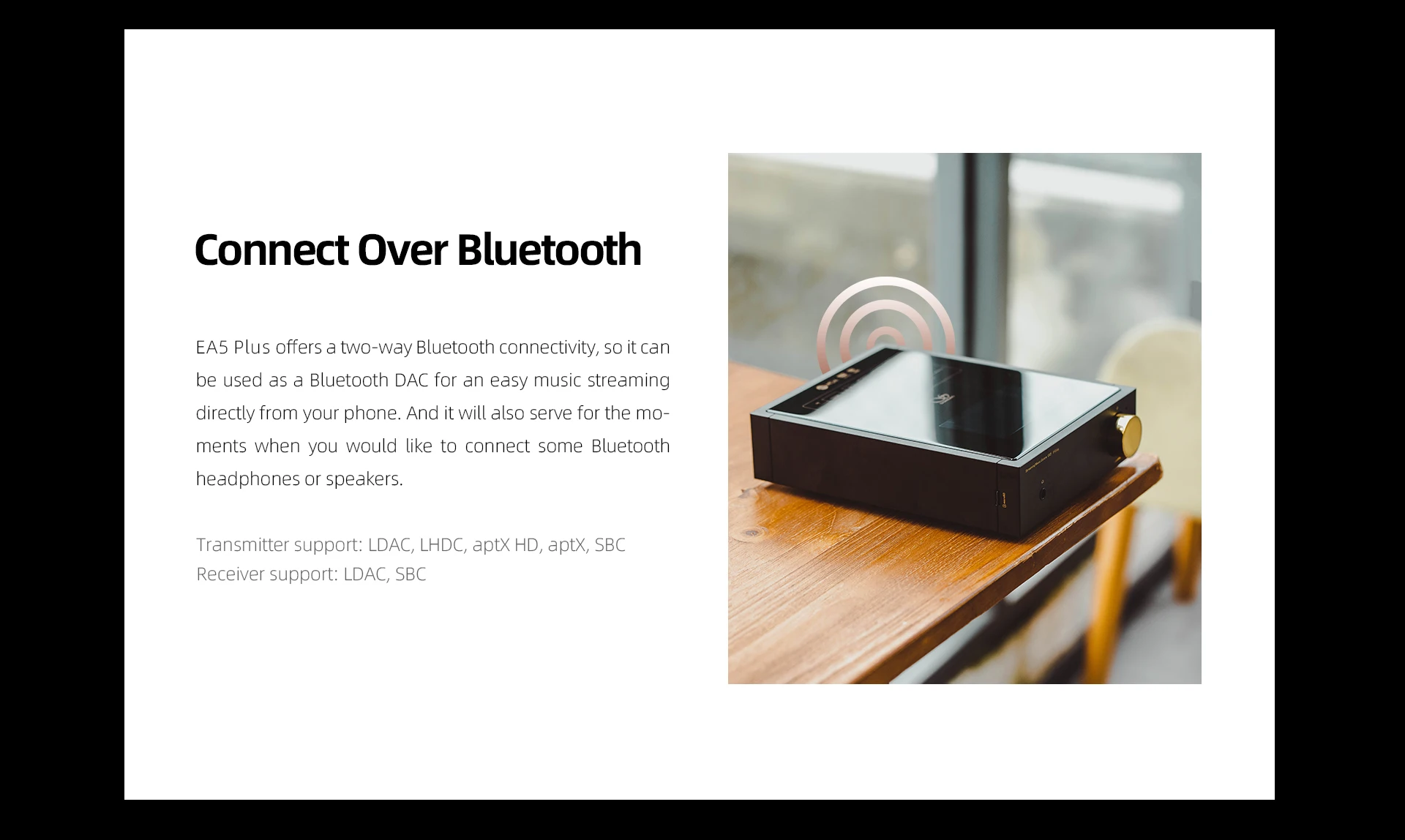

Two-way Bluetooth 4.2, with LDAC support
Audio support:
PCM 32/768
DSD256 native, DSD512 software
8x MQA
WHAT IN BOX?
EA5 PLUS * 1
Power cable * 1
